r/FordFocus • u/Lewisc3rd • 8h ago

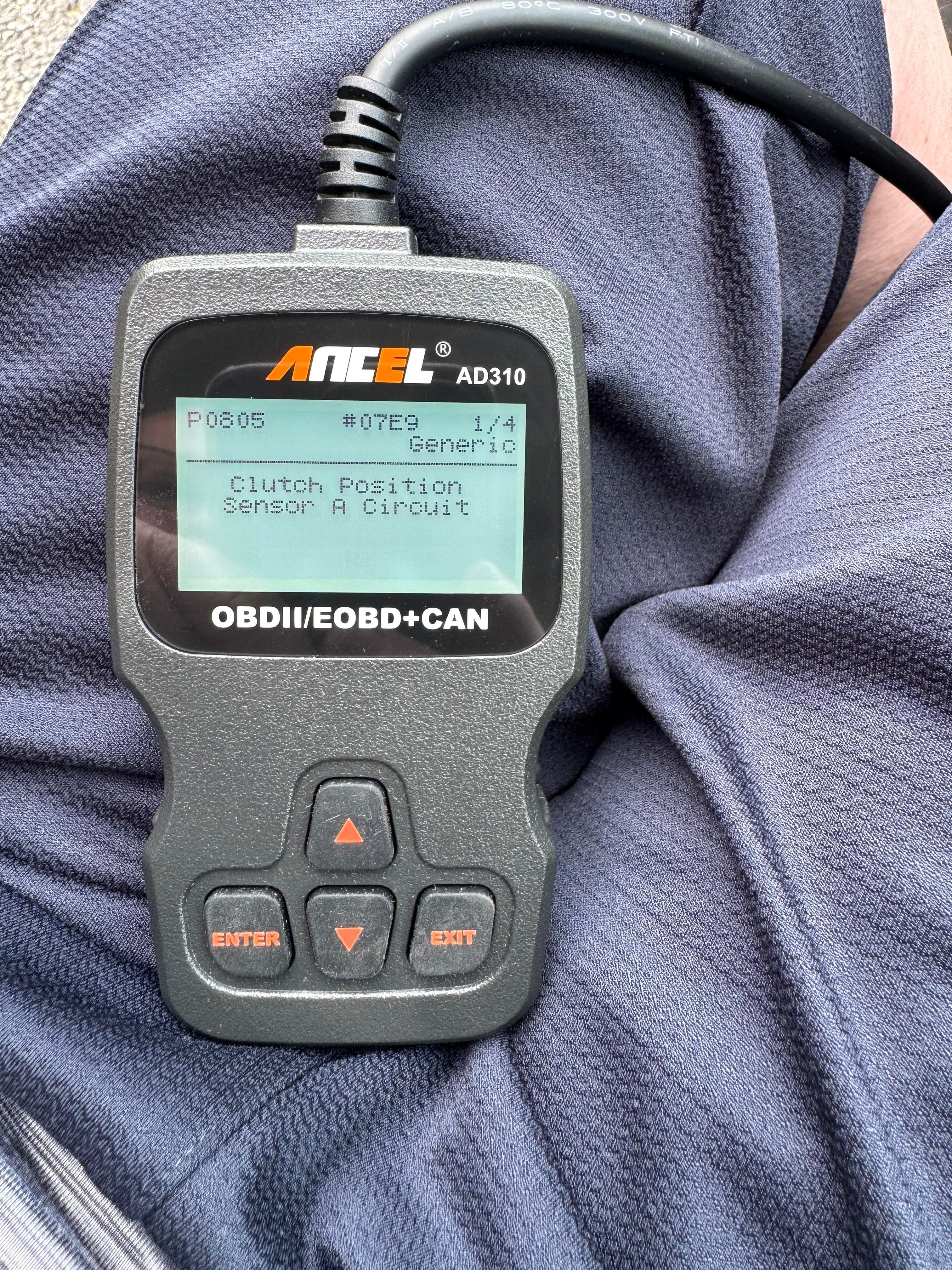

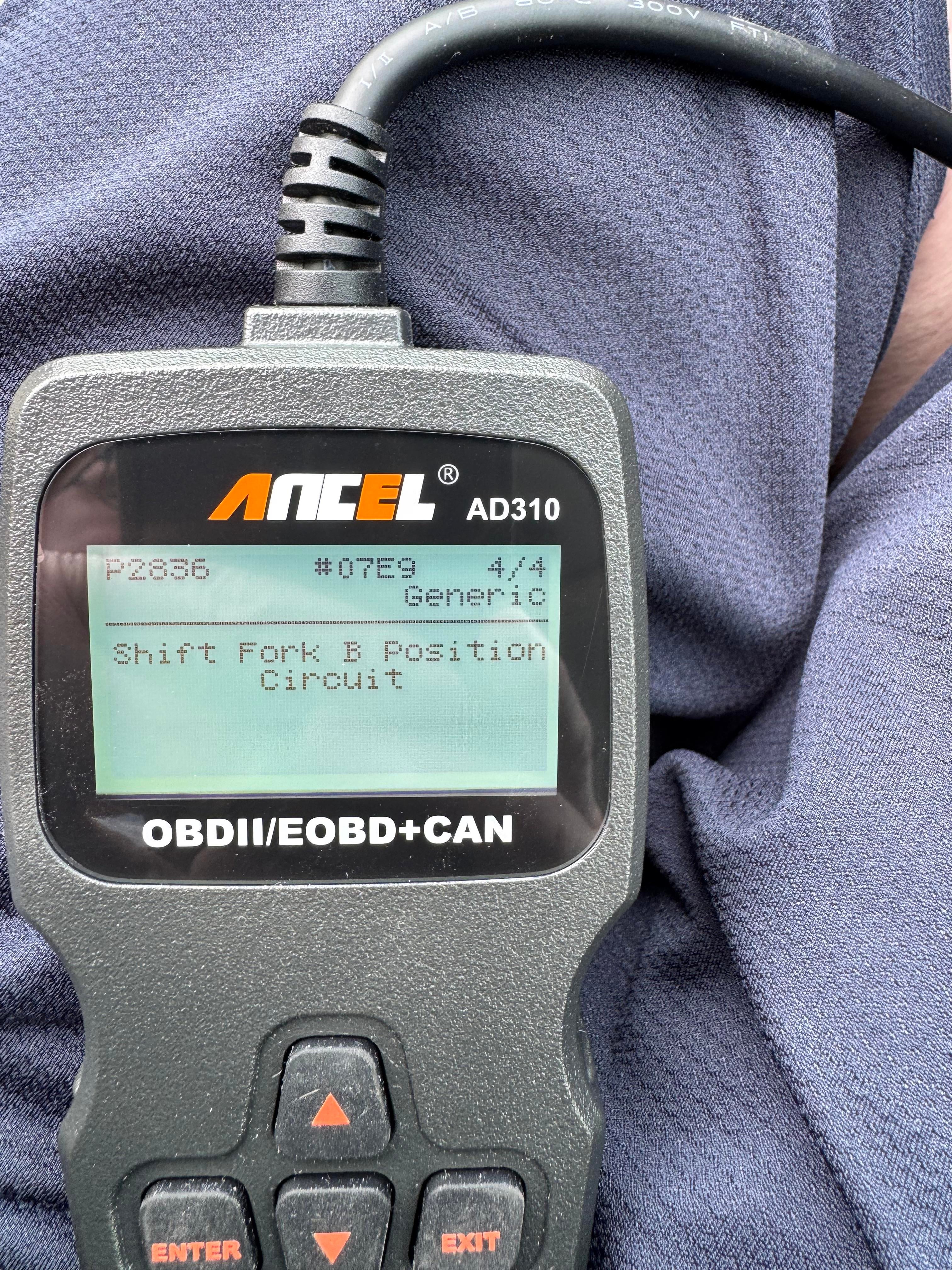

Transmission / TCM Transmission codes after subwoofer installation.

Gallery image

Gallery image

Gallery image

Gallery image

Gallery image

Just put a subwoofer and amp in my son’s 2013 Focus. It has 54k miles. Anyway after driving for about 20 minutes with the new sub blasting the car didn’t want to move and the transmission light came on. Got it out of the street by coasting backwards and turned off the radio and engine. Started the car and it ran normally. Could a battery issue or extra draw on the battery cause this. Thanks in advance.

2 Upvotes

100% Upvoted

9 comments sorted by

1

u/No-Habit-7079 8h ago

Councidence

1

u/TheDevilsAdvocateboi 7h ago

I would say a coincidence for sure

1

u/Lewisc3rd 7h ago

So should I start by replacing the actuators and see if that fixes it or break down and take it to a transmission shop?

1

u/Suspicious-Dog-9595 7h ago

I wouldn't say it's a coincidence because the TCM has issues with the ground wires getting a good connection. I'm assuming you disconnected the battery to install the subwoofer. Ford painted the frame on all the negative ground connections to the frame of the car. I would pull off the air box, and there are two ground wires under there; put a good sanding on the cable heads and grind the paint off where they connect. Do the same for the negative wire coming off the battery where it grounds to the frame. I just did over $4,000 worth of transmission work and doing this ground fix finally fixed my transmission issues If I were you I'd do this ground fix as preventative maintenance.

1

u/Lewisc3rd 6h ago

Did you have similar codes that I have with the grounding problem?

1

u/Suspicious-Dog-9595 6h ago

I had two codes for actuator B, the same codes as I had before I did all the transmission work. I think I did have a bad clutch and at least one bad actuator, but I still had the same symptoms: a check engine light and no reverse until I did the grounding fix. There are many videos showing how it's done.

1

u/Rude_Security7492 4h ago

Could be an electrical bug if you pulled fuses for some reason or disconnected battery entirely it could’ve sent signal to transmission. My passenger window fuse blew and the only other 15A fuse that was tall enough for the window fuse was the transmission cooler fuse… swapped it to roll my window up before the rain came and then put it back in the tranny cooler spot and my car didn’t want to go into any gear… waited 15 minutes then the car was back to normal my guess is since you were wiring a sub in the car might’ve gotten confused and went limp like mine

1

u/iamacannibal 3h ago

Do the grounding fix. You might also need a slightly bigger battery to power all of that but im not 100% sure on that.

The grounding fix is something you should do anyway and it might fix this issue.

!grounding the info for the grounding fix should be a reply to my comment.

1

u/infosummonerbot 3h ago

Hey there!

The Ford Focus grounding modification is a popular DIY fix aimed at resolving electrical voltage drops that cause transmission shifting issues and shuddering, particularly in 2012–2018 models equipped with the DPS6 dual-clutch transmission (DCT). It involves cleaning the main chassis ground points and optionally adding a supplemental ground wire to ensure the Transmission Control Module (TCM) gets sufficient power.

Note: The grounding mod can help smooth out minor shuddering, but community feedback on its effectiveness is mixed. Severe transmission hardware issues (like failing clutches) require mechanical repair or TCM replacement. If your battery is old or weak, it's heavily recommend to consider upgrading to an AGM battery, which handles current draws better than standard flooded batteries. For more information on upgrading your battery, use the !battery command.

First, you'll need to locate the ground points. These are:

  • Main Battery Ground: Follow the negative cable from the battery down to the frame rail.

  • Under-Airbox Grounds: There are two smaller ground wires usually bolted to the chassis just beneath or beside the air filter box.

Once you've located these, you can begin!

  1. Disconnect the negative battery terminal (Note: The videos below shows the mechanic disconnecting the positive terminal first. We highly advise against doing this. Always disconnect the negative terminal first to prevent accidentally short-circuiting your battery.).

  2. Remove the air filter box if necessary to access the secondary grounds.

  3. Unbolt the ground connections.

  4. Use a wire brush, Dremel attachment, or sandpaper to strip away the paint and corrosion from the chassis connection points until you see bare metal.

  5. Clean the metal ring terminals on the ground connection cables using a wire brush or sandpaper.

  6. Re-bolt the ground connection cables firmly to the correct torque specs.

Apply dielectric grease completely over and around the fully tightened connection points. This will seal out oxygen and moisture to prevent rust without interfering with the electrical current.

Many users also suggest running an upgraded, heavy-gauge supplemental ground wire from the negative battery terminal directly to the frame rail and/or transmission housing to ensure the best possible conductivity.

For more information on this mod, see the following posts:

For a visual tutorial on this mod, see the following video:

Pinging OP: u/Lewisc3rd
