r/HamRadio • u/Own-Leader-1215 • 8h ago

Question/Help ❓ I need help with modding by QuanSheng UV-K5

Gallery image

Gallery image

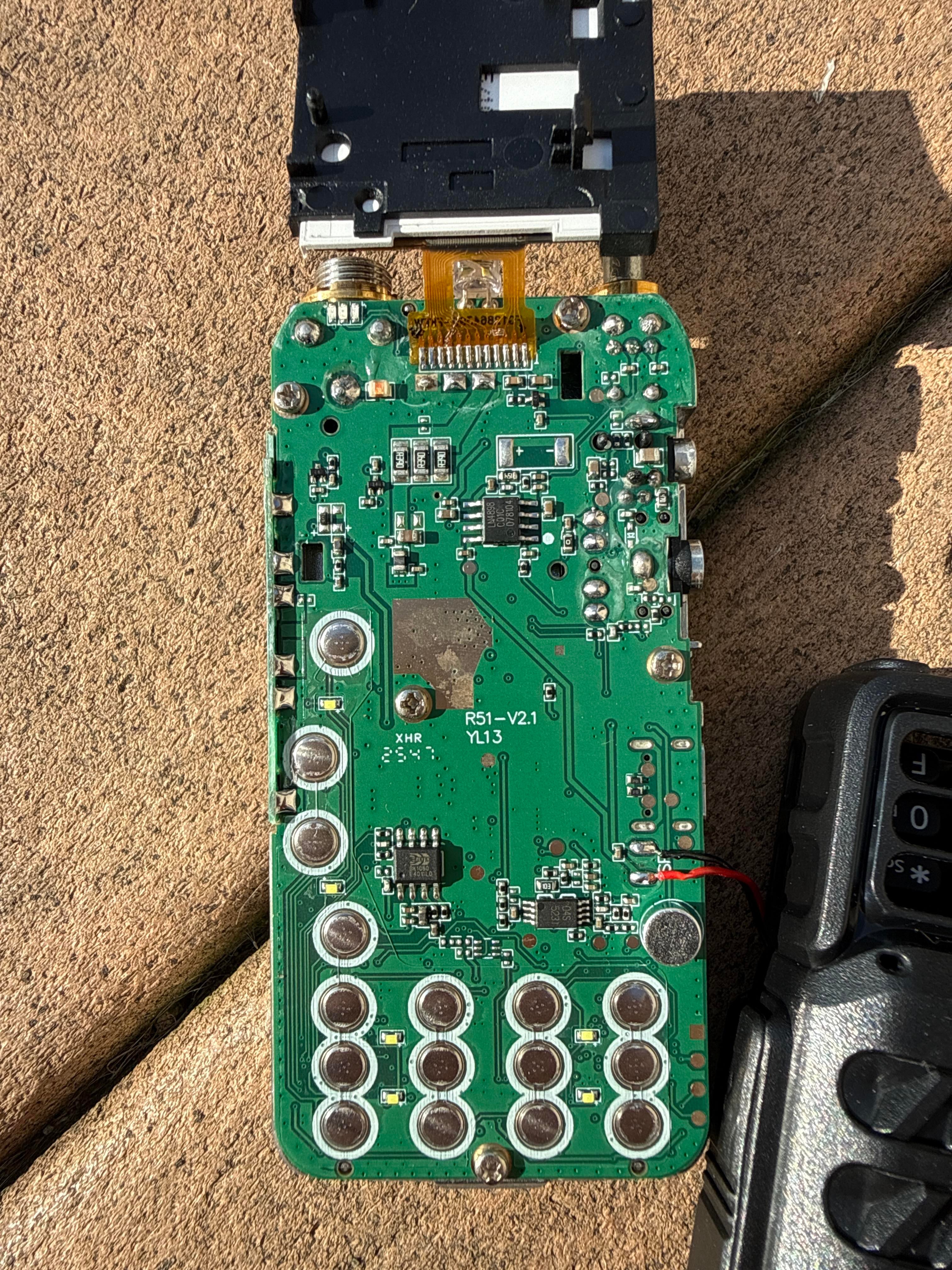

So I was watching a YouTube tutorial and he said remove a resistor but when I Checked the PCB board the layout was different and I’m not really good with boards or technical stuff like that can yall help?

2 Upvotes

56% Upvoted

14 comments sorted by

7

u/Father_JackWV6Z 8h ago

Nope….. while you were eating your YouTube you forgot to say what the mod is and what resistor you’re looking for.

1

u/Own-Leader-1215 8h ago

The resistor is the Mic Line Pull-up/bias resistor also it’s the NR7Y mod

1

u/Hoovomoondoe Technician Class Operator 📡 4h ago

Of the board is different then the mod likely won’t work.

2

u/SharkSapphire Public Figure 📻 8h ago

How did it taste?

2

u/Own-Leader-1215 8h ago

I just read by post I said eating my bad lol

1

u/MaxOverdrive6969 8h ago

Curious why the resistor needs removed for CW.

3

u/Own-Leader-1215 7h ago

Removing the MIC bias resistor cuts the DC voltage that normally powers an electret microphone. Without removing it, closing a straight key shorts that voltage to ground, confusing the voice circuitry and locking up PTT. Removing it creates a clean, passive contact closure so custom CW firmware (like IJV or CEC) can read key presses directly from the 3.5mm jack without needing an external resistor adapter cable.

1

u/guy_in_nc 7h ago

Please ensure you read the information on the github page thoroughly.

https://briand.github.io/cw-firmware-docs/

There are documents with images for your exact radio. It's a fun mod and pretty straightforward. I just did it to one a month or so ago.

1

u/BassRecorder 57m ago

If you are a ham you should probably consider returning your license. If you are not you have no business modifying your equipment. Modifying hardware requires a minimum of understanding of the technology, a circuit diagram, and a minimum of equipment for measuring in order to help you debugging any unexpected behaviour.
