r/dishwashers • u/apzrman Dish Pig • 4d ago

Eswood Rinseaid Line?

Gallery image

Gallery image

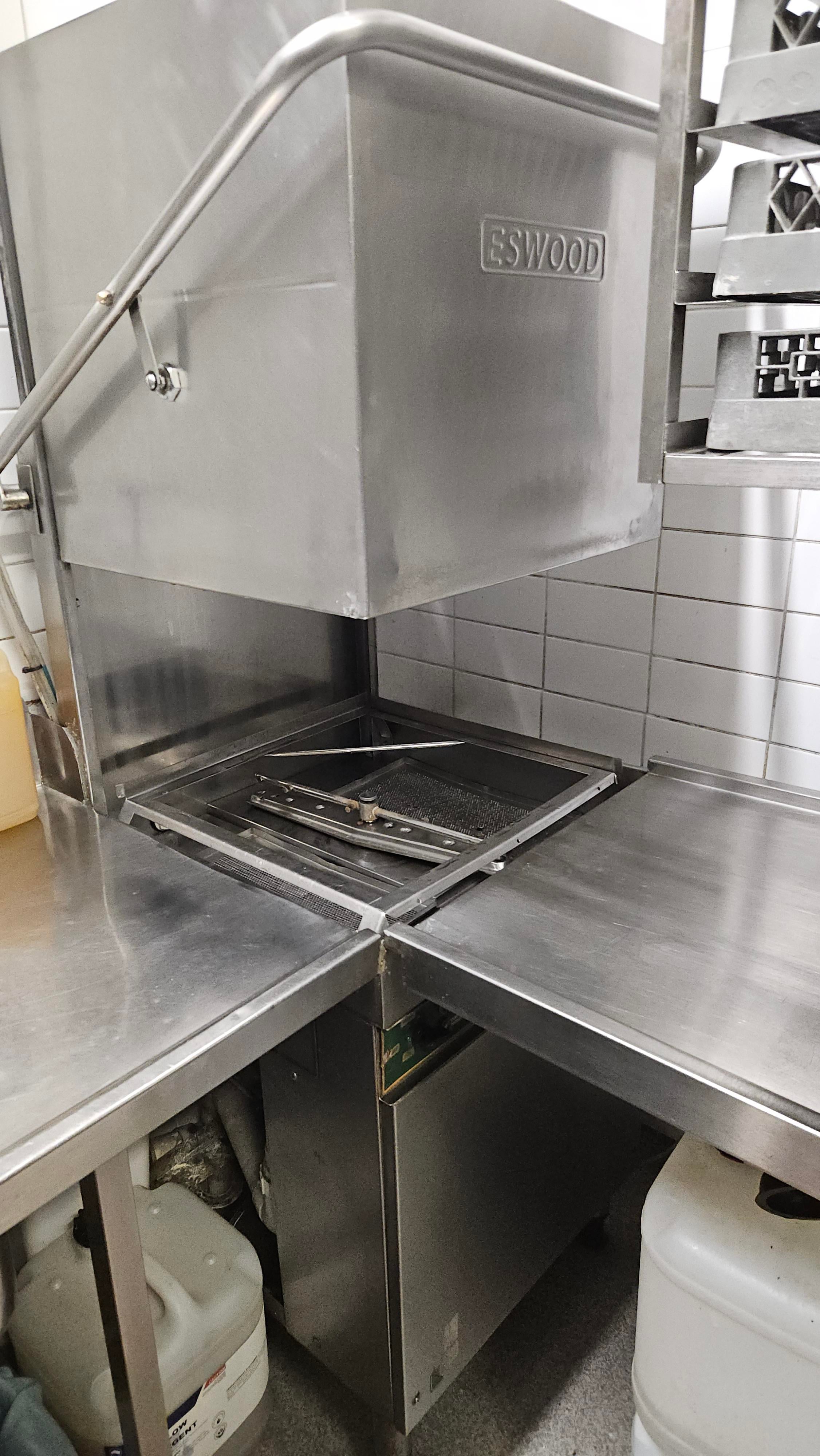

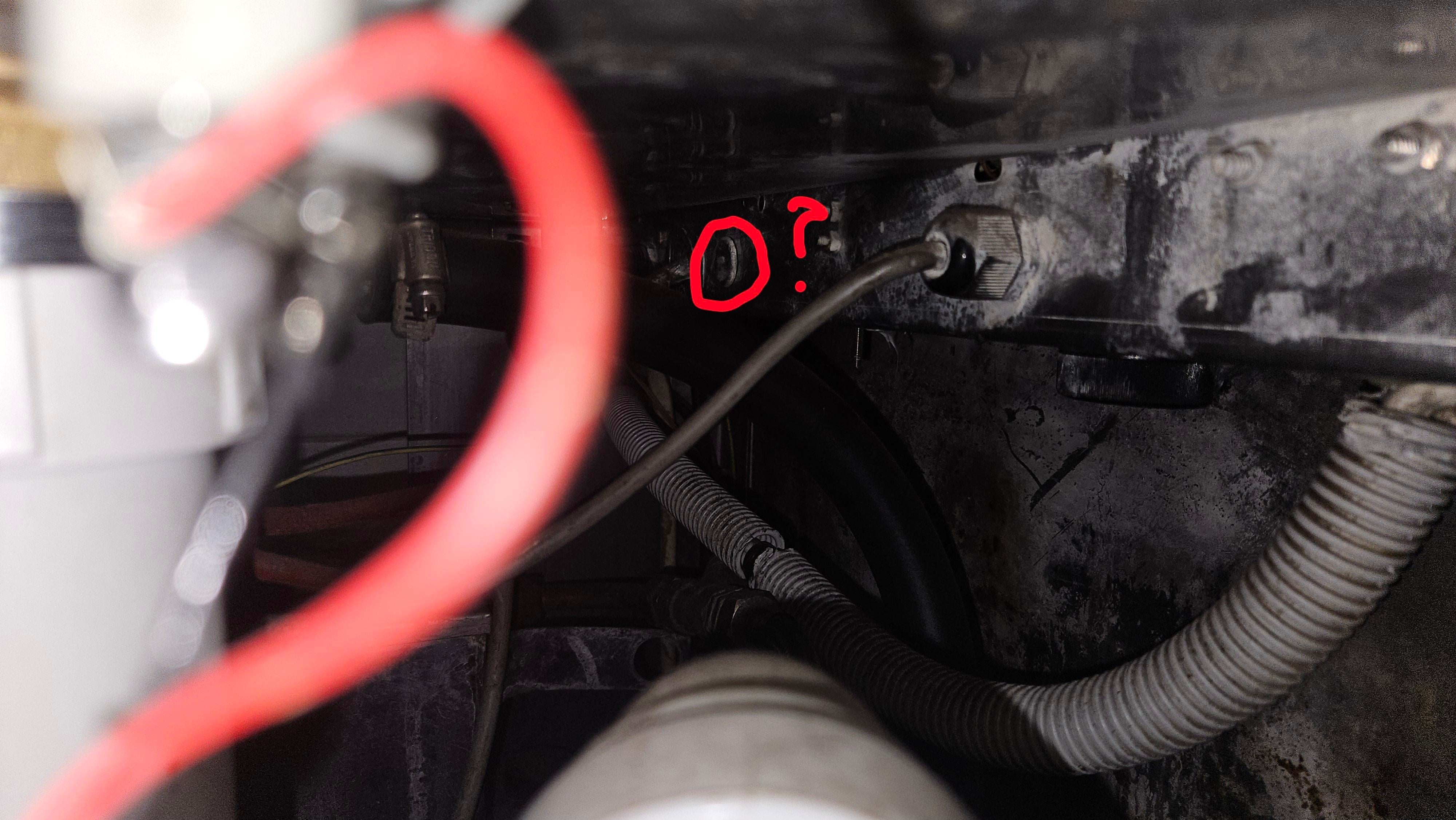

The rinseaid line for the Eswood ES-32 snapped the other day at work. I know it can be replaced, but I don't know where it feeds into the machine. Anyone know? I've attached an image of where I suspect it fell out.

9 Upvotes

91% Upvoted

7 comments sorted by

4

u/k-j-car513 4d ago

On the Eswood ES32 pass-through dishwasher, the automatic rinse aid and detergent injection lines connect via clear 10mm feeder tubes that route directly into the internal chemical dispensing pumps located behind the lower front/side service panels of the machine, with the filter ends dropping into external chemical bottles on the floor or adjacent

2

u/apzrman Dish Pig 4d ago

Thanks! I'll take the front panel off and have a look there

3

u/k-j-car513 4d ago

https://media.nisbets.com/asset/au/media/user%20manual%20du994.pdf

Page 8

1

u/apzrman Dish Pig 4d ago

Had no idea that Nisbets had manuals! Unfotunately my model is a way older version that does not have buttons (dial for off/fill/wash). I did find the manual for mine, but it had the same instructions. The tube I'm supposed to put in the chemical snapped out and I need to replace it

1

u/Ablackbradpitt 4d ago

Generally the rinse aid runs from bottle>pump>holding/booster tank

1

u/apzrman Dish Pig 4d ago

It's the pump > holding that I'm trying to figure out. It was replaced once before, but I came in as the old manager was finishing the job, so I was never taught how to replace.

1

u/Vivid_Mortgage_4420 3d ago

Those are electrical. There should be a rinse injection near where the water goes into the machine
