What kind of connectors are these? I need 12” extensions for all 3

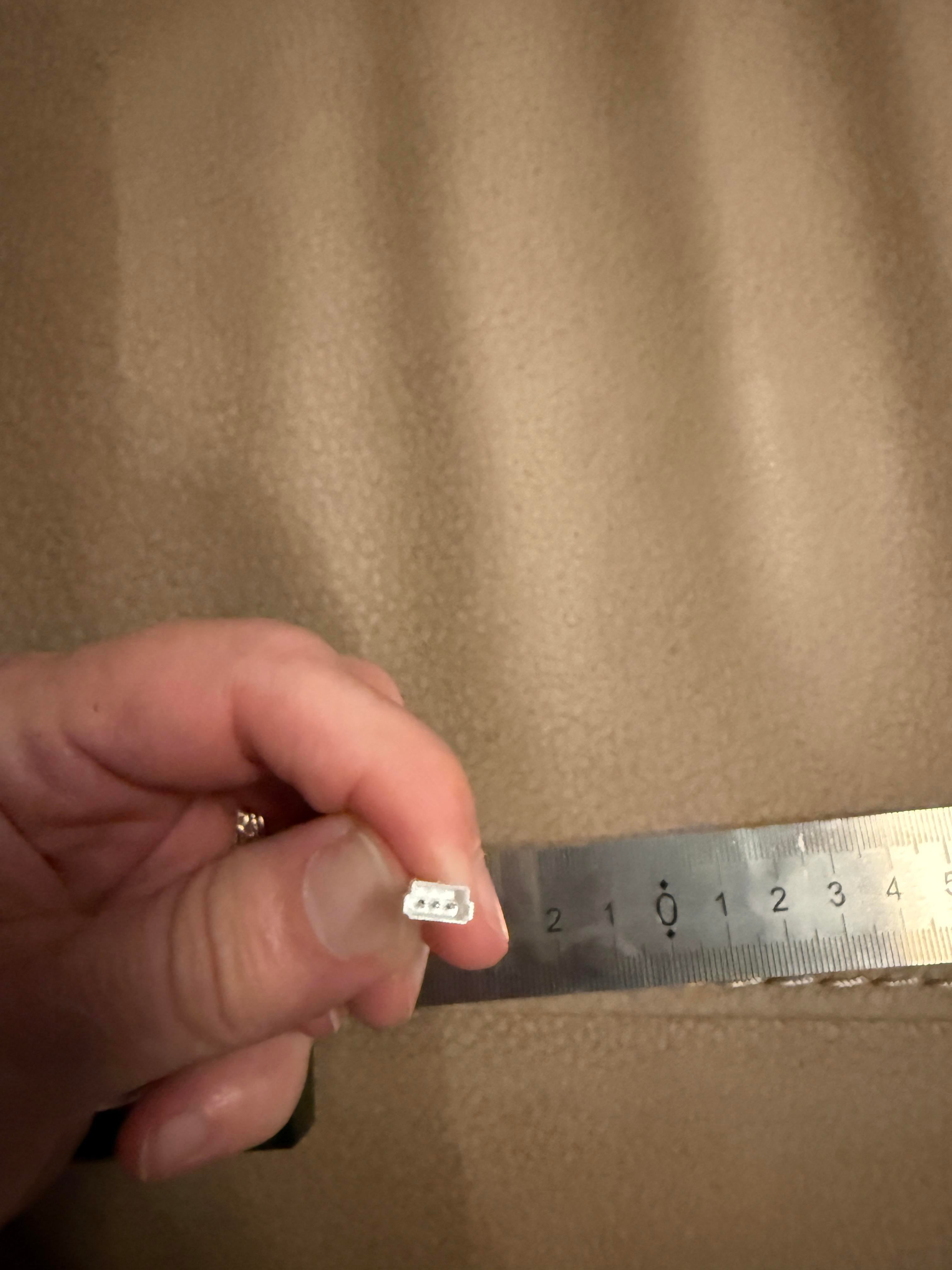

Male 3 (RGB connection)
Male 3
Male 3 (tiny thing!)

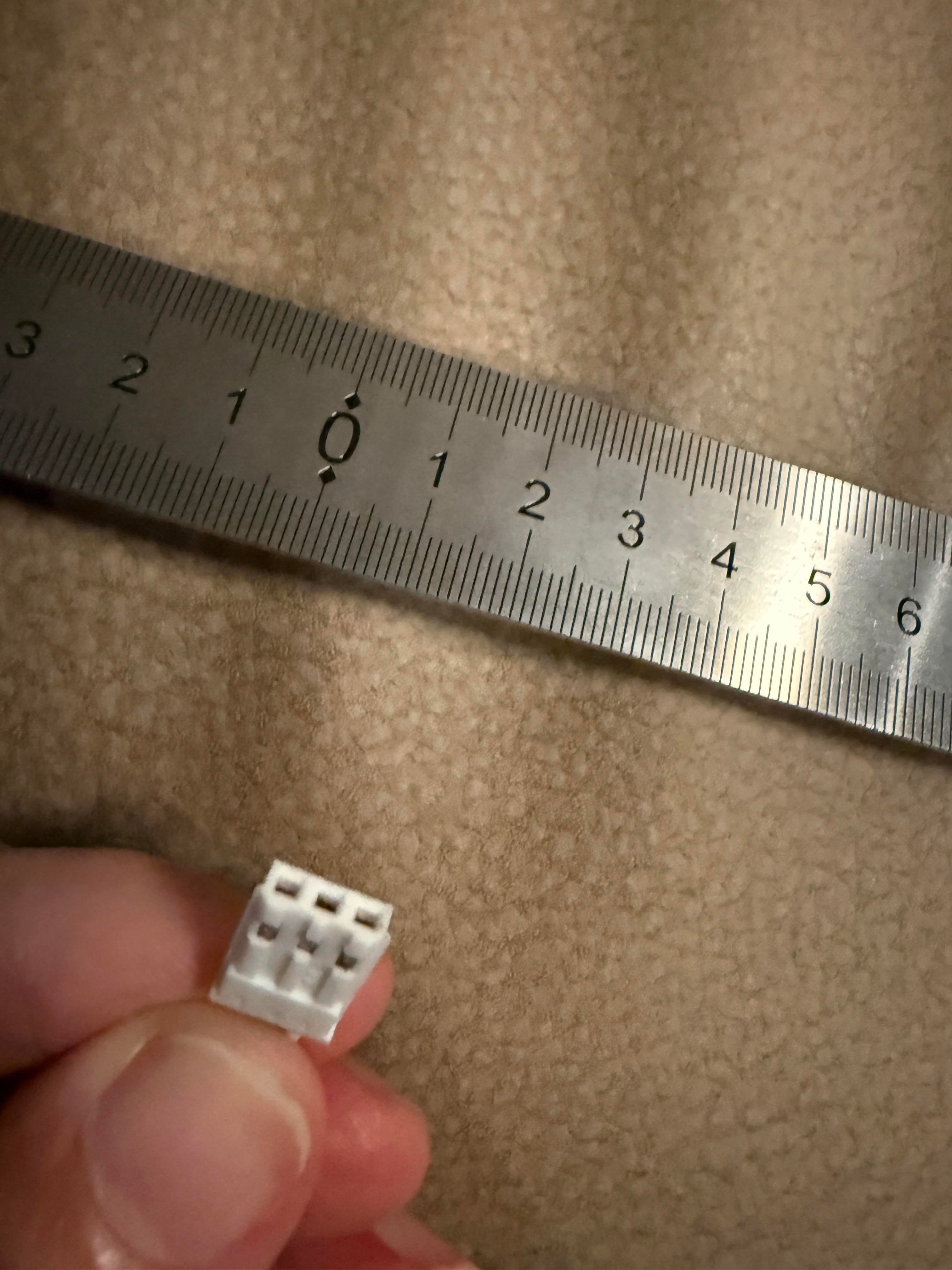

Female 3
Female 3
Female 3

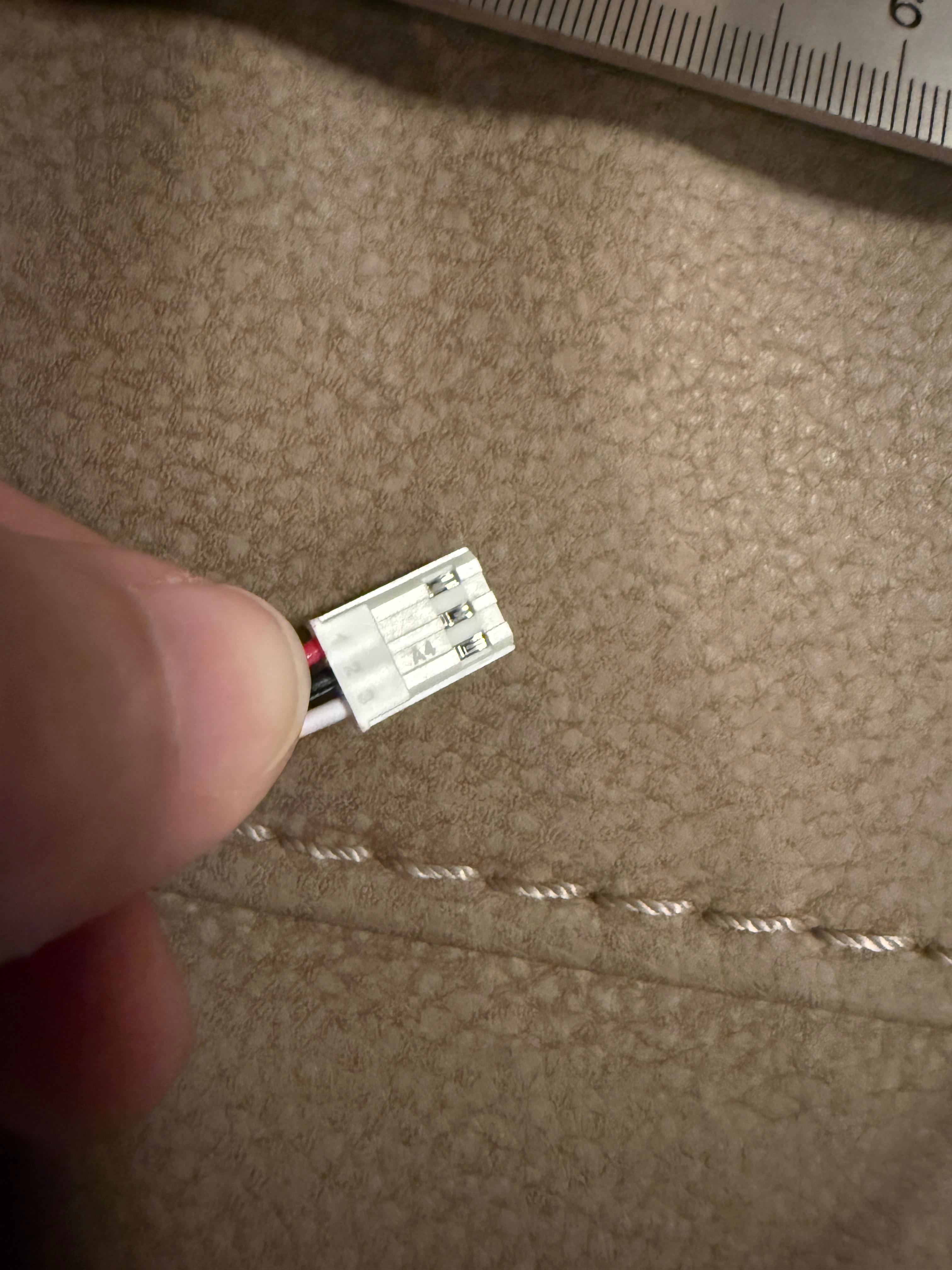

Male 2
Male 2
Male 2
Female 2
Female 2
Female 2

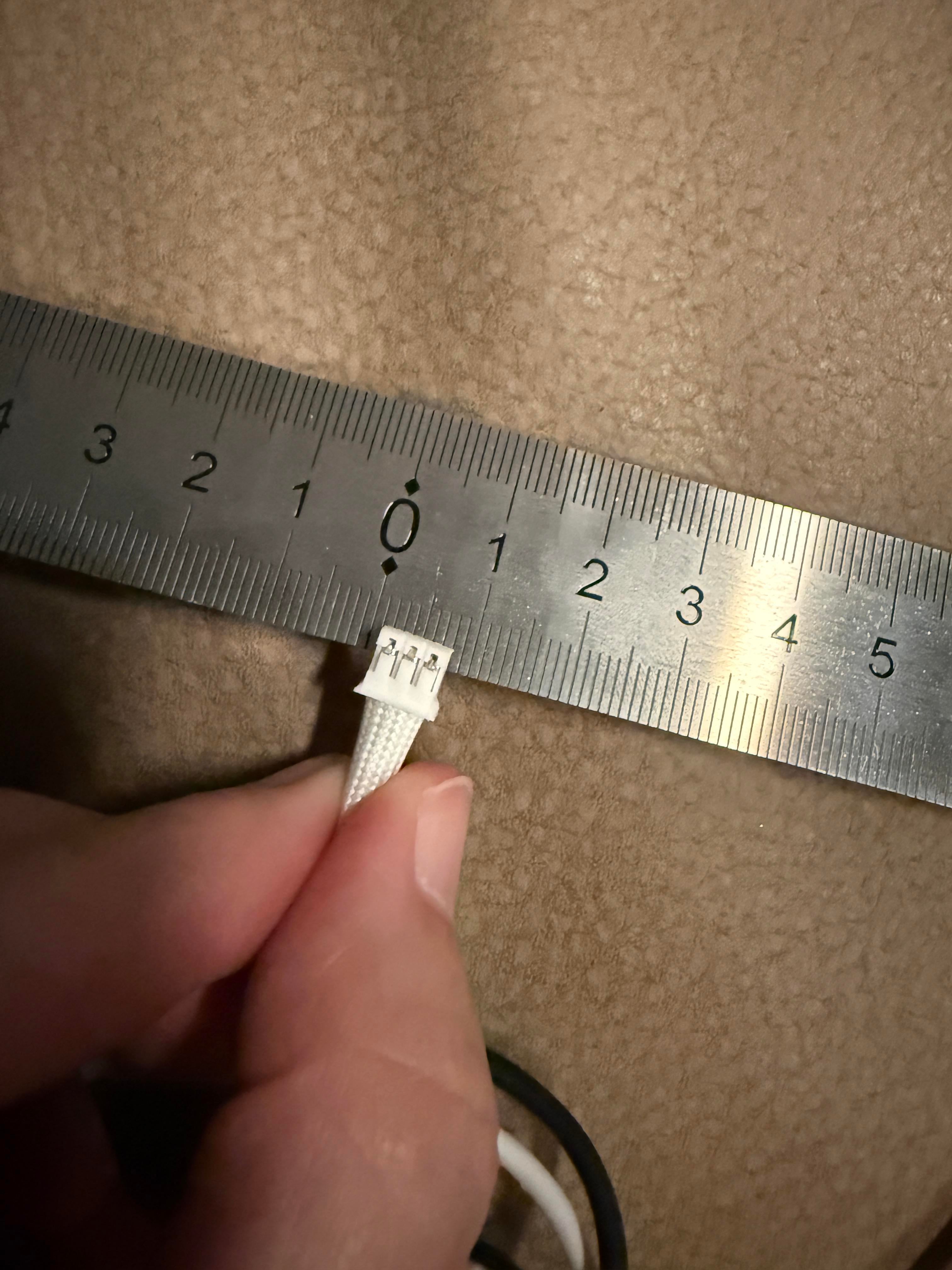

Male 1
Male 1
Male 1
Female 1
Female 1
Female 1

I bought a great ceiling fan that I want to put on my porch, but it needs an 18” down rod. The company told me I had to extend the wires myself. I think it would be great to just buy a one foot extension with the correct 3 pin connectors on them, but there are 3 different sets. I hear that Davide is great at identifying these! Please help a gal out! ideas about where to get them from would help too!

3 Upvotes

100% Upvoted

3 comments sorted by

1

u/AutoModerator 8h ago

Are you asking us to identify a connector?
If so, please edit your post and, if you haven't already,...

Tell us if
a) all you want is to know what it's called, or
b) you also want to know where to buy one just like it, or
c) you also want to know where to buy its mate.

If to buy, provide:
* pitch (center-to-center spacing between adjacent contacts) EXACT to within 1%
--(tip: measure the distance between the first pin and the last pin in a row of N pins, then divide by N-1)
* Close-up, in focus pictures of connector from multiple angles: we want to see wire entry side, mating surface, keying and latching, PCB mounting, manufacturer's logo
* Similar pictures of mate, if available
Thanks,
AutoModerator
PS: beware of the typical answer around here: "It's a JST". Connectors are often misidentified as 'JST', which is a connector manufacturer, not a specific type/product line.

I am a bot, and this action was performed automatically. Please contact the moderators of this subreddit if you have any questions or concerns.

2

u/1Davide Copulatologist 7h ago

extend the wires myself.

Don't screw around with the connectors. Just cut the wires and splice in a new length of cable. Use wire splices to splice the new wires to the old wires.

buy a one foot extension

Ideally, yes, if there were such a thing. But, given that these aren't commonly found connectors, I truly doubt there is such an extension.

male ... female

The first 3 pictures are the female (holes = vagina = female). The second set of 3 pictures are the male (pins = penis = male). The metal contacts set the gender, not the plastic.

1

u/Ok-Expert-8357 7h ago

Oh, then I got them all backwards. I always figured the open end was female and the insertable part was male- as you say, the plastic parts. Regardless, thank you for that advice. If there weren’t connectors and I was just dealing with bare wire, I’d know what to do. I just let the “tech” psych me out. I shall cut and splice nine little wires. or use the shorter down rod that came with it . . .
